Han® 1A: HARTING’s Miniaturised and Multifunctional Connector Solution
With the Han® 1A, HARTING has responded to the trend towards miniaturisation across industries and sectors. As the requirement for smaller interfaces on robotics and engineering equipment grows, space becomes a premium. As a result, the 1A has been designed to take up less installation space and provide the user with all the benefits of a modern network.

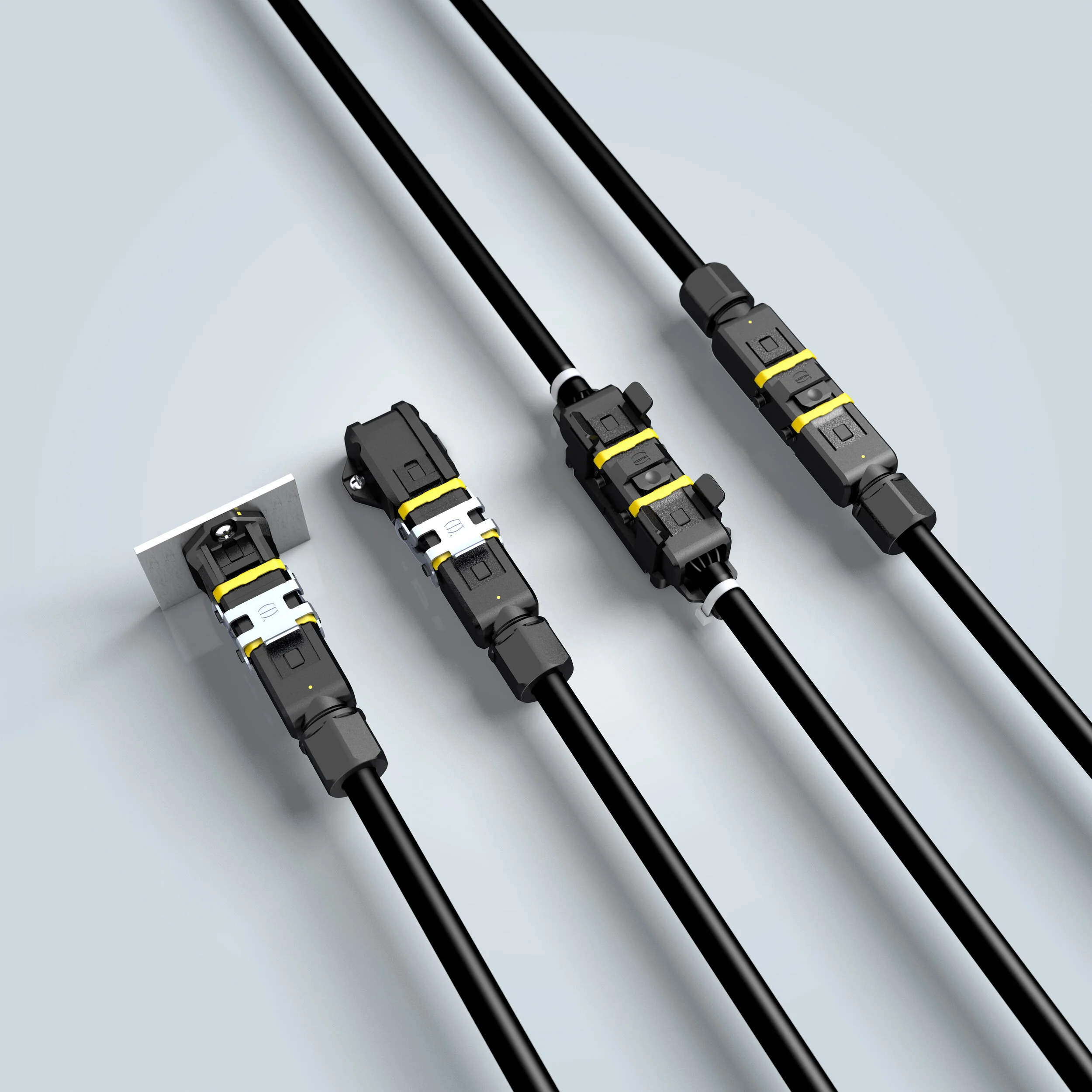

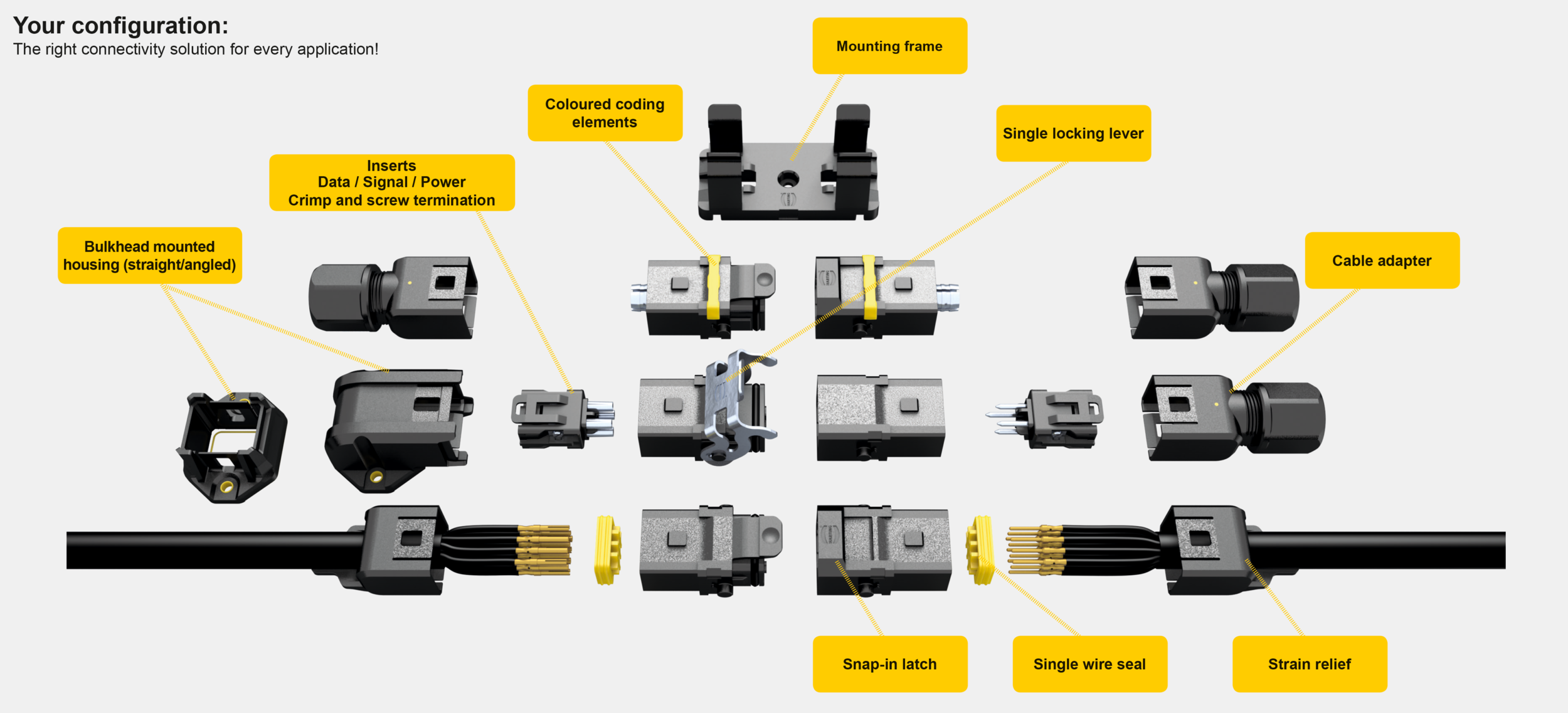

Thanks to the easy ‘click and mate’ design of all components, the connector can be assembled in seconds without the need for any tools. The range also includes useful accessories such as fasteners for wall mounting and colour coding clips to help identify different lines and reduce cabling errors.
Only two components are required to quickly assemble an IP20 solution, while additional housing elements or single wire seals can easily extend the degree of protection to IP65, making it suitable for use outdoors.
The adaptable connection technology offers a secure solution whether you require rapid onsite installations using screw contacts or the pre-assembly of separate units with crimp contacts. Thanks to this flexible approach, it’s easy to create simple and efficient interfaces for use in automation, robotics, transportation, traffic engineering and the energy sector.

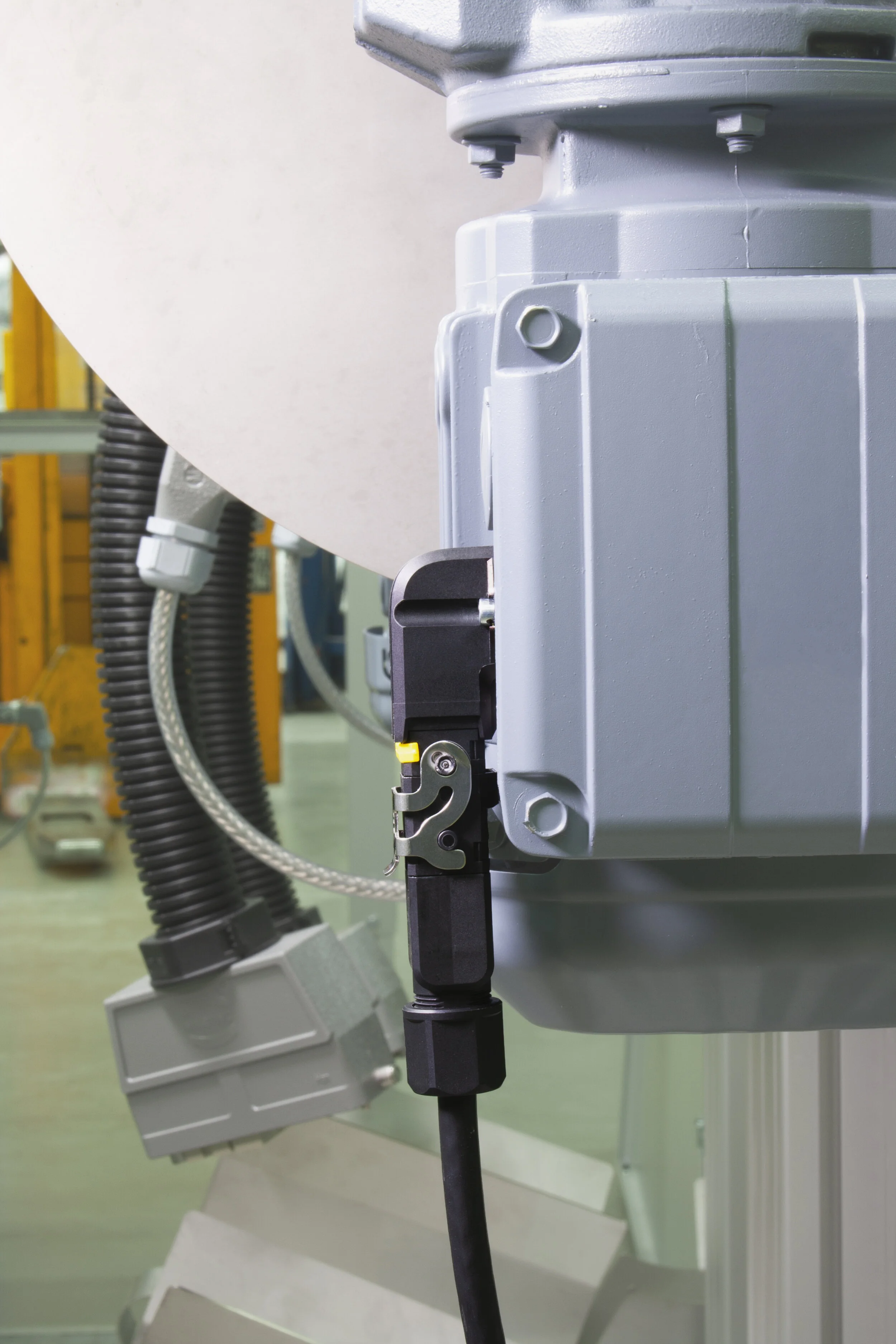

In mechanical engineering, it provides an efficient solution for connecting tools and smaller machine modules such as heating and cooling units, fans, control terminals, lighting systems, drives and vibration conveyors.

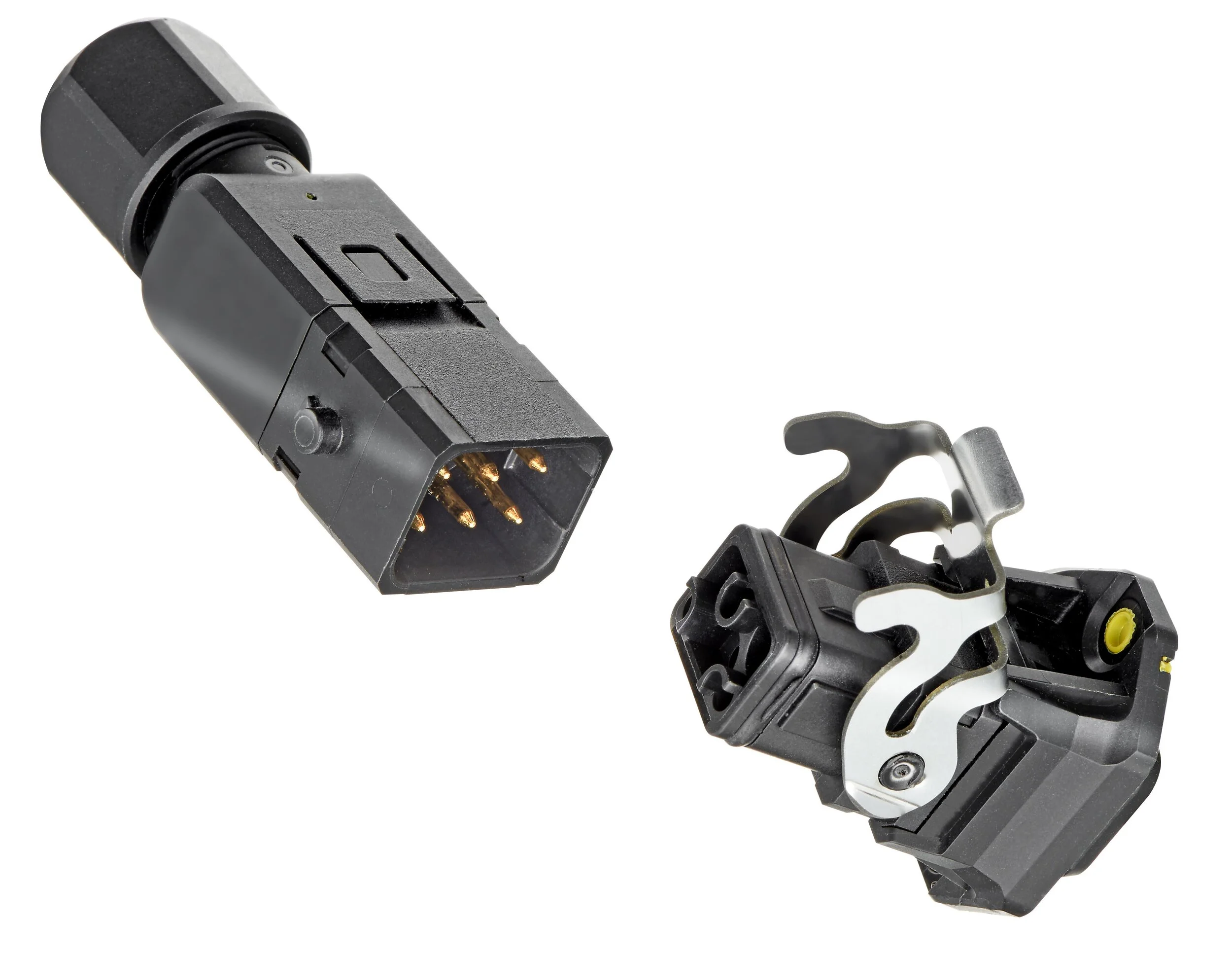

Constructed from lightweight yet durable polyamide plastic, the Han® 1A is extremely adaptable because it employs a modular system of inserts. This means it can integrate contacts for the delivery of data, signal and power.
Modules for Cat. 5 or Cat. 6A are available for data transmission and up to 12 D-Sub contacts can be constructed for signal interfaces. For power applications, it can transmit a maximum of 16 amps and 400 volts. A shielded version is also available for areas which are particularly susceptible to interference.
The Han® 1A also complies with standard EN 45545-2 for fire protection on railway vehicles, making it ideal for use on door systems and ramps, door openers, push buttons, lighting systems and screens. What’s more, as the entire Han® 1A connector system is based on just a few components, material supply is greatly simplified as a plug-in connection consists of a maximum of twelve different contacts.
To learn more about the Han® 1A, please visit www.harting.com/UK/en-gb/compact-connector or email salesUK@HARTING.comwww.harting.com
